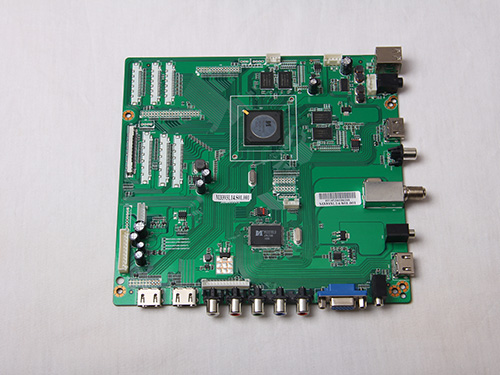

Function

M3393L14.S01

Destination Country

(America,Korea)

PanelType

TFT LCD with LED Backlight

PanelSize

>42 Inch LED

Panel Resolution

3840x2160

IC Part Number

MSD3393LU+MSD6M50DVC

Color System

ATSC,NTSC

Sound System

M/N,AC-3

ATSC Modulation

8VSB,64QAM

CC,VCHIP,BTSC,EPG

Yes

MHL

Optional

CVBS/YPbPr

x1(AV PAL,NTSC)/(YPbPr up to 1920x1080)

HDMI 1.4

x1(up to 1920x1080)

HDMI 1.4

x2(up to 3840x2160)

HDMI 2.0

x1(up to 3840x2160)

TV

ATSC,NTSC(Air:CH2~CH69,Cable CH1~CH135)

USB

x1(Support Software Updating)

Power Supply

DC:12V

Standby Power Comsunption

<0.5W

Audio Power

2x8W(8ohm) TDA7491P

Dimension

188.5(L)*182.5(W)*16(H) mm

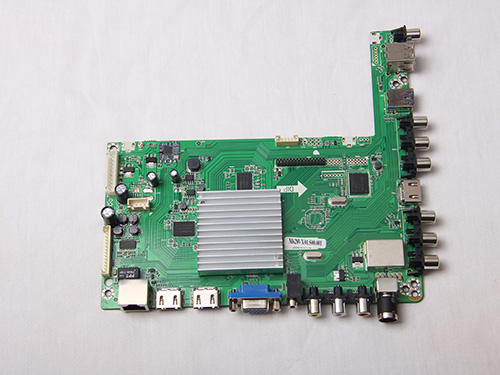

Function

M628VX01.S00

Destination Country

China

PanelType

TFT LCD with LED Backlight

PanelSize

28-55 Inch

IC Part Number

MSD6A628VX-Z1-ST

PC-RGB

x1(up to 1920x1080)

CVBS

x1(PAL,NTSC)

YPbPr

x1(up to 1920x1080)

HDMI

x2(up to 1920x1080)

TV

Analog TV(48.25MHz-863.25MHz)

Color System

PAL

Sound System

DK,I,

Number of Channel

199

DTV

DTMB(4QAM/16QAM/64QAM)

USB

USB2.0x2, USB3.0x1

Scart

No

Avout

x1

OS

Android

Network

Ethernet:10Mbps,100Mbps Base-t

Wifi:802.11 b/g/n(optional)

Power Supply

DC:12V

Standby Power Comsunption

<0.5W

Audio Power

2x8W(8ohm) TDA7491P

Dimension

188.5(L)*181(W)*16(H) mm

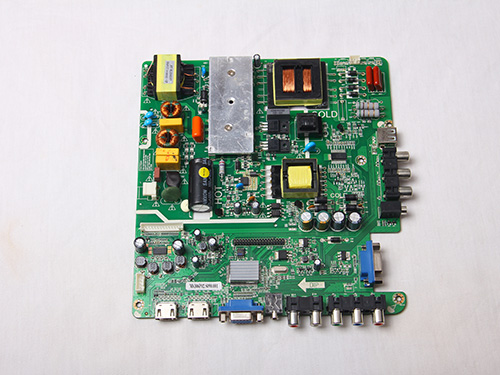

Function

M6306P02.S090

Destination Country

Taiwan

Panel Type

TFT LCD with LED Backlight

PanelSize

48~55 Inch

IC Part Number

MSD6306PUM-Z1

Color System

NTSC

Sound System

M

NICAM/A2

No

Teletext

No

CC,VCHIP,BTSC

Yes

Number of Channel

199

PC-RGB

x1(up to 1920x1080)

CVBS

x2(PAL,NTSC,SECAM)

YPbPr

x1(up to 1920x1080)

HDMI

x2(up to 1920x1080)

TV

Analog TV(48.25MHz-863.25MHz)

DTV

DVB-T(QPSK,16QAM,64QAM)

USB

x1(Support Multimedia Playing)

Scart

No

Avout

No

Audio Power

2x8W(8ohm) TDA7491P

Switching power supply specification

Output

DC Voltage

12V

Rate Load

2A

LED voltage and load

80V-300V/LED=110Wmax

Input

Voltage Range

100Vac-240Vac

Frequency Range

50Hz/60Hz±5%

Efficiency

>80%

Standby Power Consumption

<0.5W@at 240Vac

Leakage Current

Less than 0.35mA@240Vac/50Hz

Environment

Working Temp

0℃ to +50℃

Working Humidity

10% to 90%

Storage Temp

 -20℃ to +70℃

Storage Humidity

5% to 95%

Safet & EMC

Safety Standards

EN60065;IEC60065;EN60950;GB8898

Withstand Voltage

I/P-O/P:3.75KVac;O/P-FG:1.8KVac

EMI Conduction & Radiation

EN55022;EN55013

Others

MTBF

500Khrs min.  MIL-HDBK-217F(25℃)

Dimension

189(L)*205(W)*16(H) mm

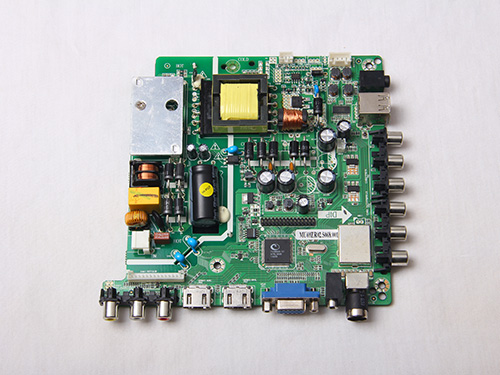

PanelType

TFT LCD with LED Backlight

PanelSize

28~43 Inch

IC Part Number

TSU69ZR-Z1-ST

PC-RGB

x1(up to 1920x1080)

CVBS

x2(PAL,NTSC)

YPbPr

x1(up to 1920x1080)

HDMI

x2(up to 1920x1080)

TV

Analog TV(48.25MHz-863.25MHz)

Color System

PAL

Sound System

DK,I,

Number of Channel

199

DTV

DTMB(4QAM/16QAM/64QAM)

USB

x2(Support Multimedia Playing)

Scart

No

Avout

x1

Power Supply

AC(100V to 240V)

Standby Power Comsunption

<0.5W

Audio Power

2x8W(8ohm) TDA7491P

Switching power supply specification

Output

DC Voltage

12V

Rate Load

2A

LED voltage and load

36V-140V/LED=45Wmax

Input

Voltage Range

100Vac-240Vac

Frequency Range

50Hz/60Hz±5%

Efficiency

>80%

Standby Power Consumption

<0.5W@at 240Vac

Leakage Current

Less than 0.35mA@240Vac/50Hz

Environment

Working Temp

0℃ to +50℃

Working Humidity

10% to 90%

Storage Temp

 -20℃ to +70℃

Storage Humidity

5% to 95%

Safet & EMC

Safety Standards

EN60065;IEC60065;EN60950;GB8898

Withstand Voltage

I/P-O/P:3.75KVac;O/P-FG:1.8KVac

EMI Conduction & Radiation

EN55022;EN55013

Others

MTBF

500Khrs min.  MIL-HDBK-217F(25℃)

Dimension

155.6(L)*149.5(W)*15(H) mm

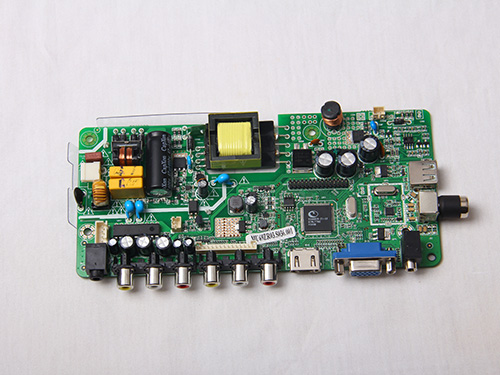

Function

MU69ZR03.S036

Destination Country

China

PanelType

TFT LCD with LED Backlight

PanelSize

<24 Inch

IC Part Number

TSU69ZR-Z1-ST

PC-RGB

x1(up to 1920x1080)

CVBS

x1(PAL,NTSC)

YPbPr

x1(up to 1920x1080)

HDMI

x1(up to 1920x1080)

TV

Analog TV(48.25MHz-863.25MHz)

Color System

PAL

Sound System

DK,I,

Number of Channel

199

DTV

DTMB(4QAM/16QAM/64QAM)

USB

x1(Support Multimedia Playing)

Scart

No

Avout

No

Power Supply

AC(100V to 240V)

Standby Power Comsunption

<0.5W

Audio Power

2x3W(4ohm) YD1517P

Switching power supply specification

Output

DC Voltage

12V

Rate Load

1.5A

LED voltage and load

21V-60V/LED=15Wmax

Input

Voltage Range

100Vac-240Vac

Frequency Range

50Hz/60Hz±5%

Efficiency

>80%

Standby Power Consumption

<0.5W@at 240Vac

Leakage Current

Less than 0.35mA@240Vac/50Hz

Environment

Working Temp

0℃ to +50℃

Working Humidity

10% to 90%

Storage Temp

 -20℃ to +70℃

Storage Humidity

5% to 95%

Safet & EMC

Safety Standards

EN60065;IEC60065;EN60950;GB8898

Withstand Voltage

I/P-O/P:3.75KVac;O/P-FG:1.8KVac

EMI Conduction & Radiation

EN55022;EN55013

Others

MTBF

500Khrs min.  MIL-HDBK-217F(25℃)

Dimension

175.4(L)*86(W)*16(H) mm
